Combination Ball Valves

Model: Y194

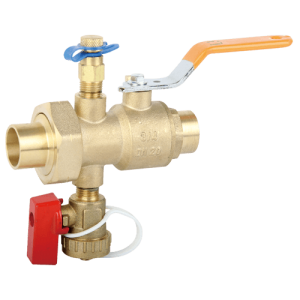

Brass Y-Strainer/Ball Valve Combination, C x C

C x C, Brass Y-Strainer/Ball Valve Combination, 400 psi WOG, Size: 1/2″ to 2″
Request A Quote Send E-mail
  • The Series Y-strainer/Ball Valve Combination provides a simplified, quality terminal hookup that protects both coils and thermostatic control valves from pipe scale, sand or weld slag. The Series features a 20 mesh stainless steel strainer (removable without breaking the line), a blow-out proof valve stem, PTFE packing, plated ball and a strainer-blowdown & drain valve with hose thread, cap & retainer. Equipped standard with a pressure/temperature port, an extra plugged port on top, and a union end with tailpiece.
  • Rated up to 400 psi/275 kPa and 230℉/110℃.
  • Size: 1/2″ – 2″

Related Products

Packaging & Shipping

  • Standard packaging: inner box, master carton and plywood pallets.
  • Personal packaging acceptable per customer instruction, retail packaging or bulk packaging, label, hang tag, etc.
  • Shipping lead time 45days in average worldwide ocean delivery, Incoterms FOB, CIF, EXW, etc.

Request A Quote

Contact us for more information on Application Consultation, Sample Support, FOB Pricing etc.
You will be replied within 8 hours.

Frequently Asked Questions

  • Who should I contact if I have question?

    Email to:

    – [email protected] contact person March Hu
    – [email protected] contact person Daisy Kan

  • What is your sample lead time ?

    In average 45-60 days.

  • What shall I submit for OEM production enquiry?

    Prefer to both drawings and samples, otherwise either drawings or samples

  • What is your mass production lead time?

    Depending on purchase order quantity, in average 45-60 days.

  • What is payment term required?

    Based on customer credit:

    • T/T 30% down payment, 70% balance against BL document,
    • T/T payment 30-90 days for long term big brands

  • Do you provide any warranty?

    It depends, normally 3 years.
